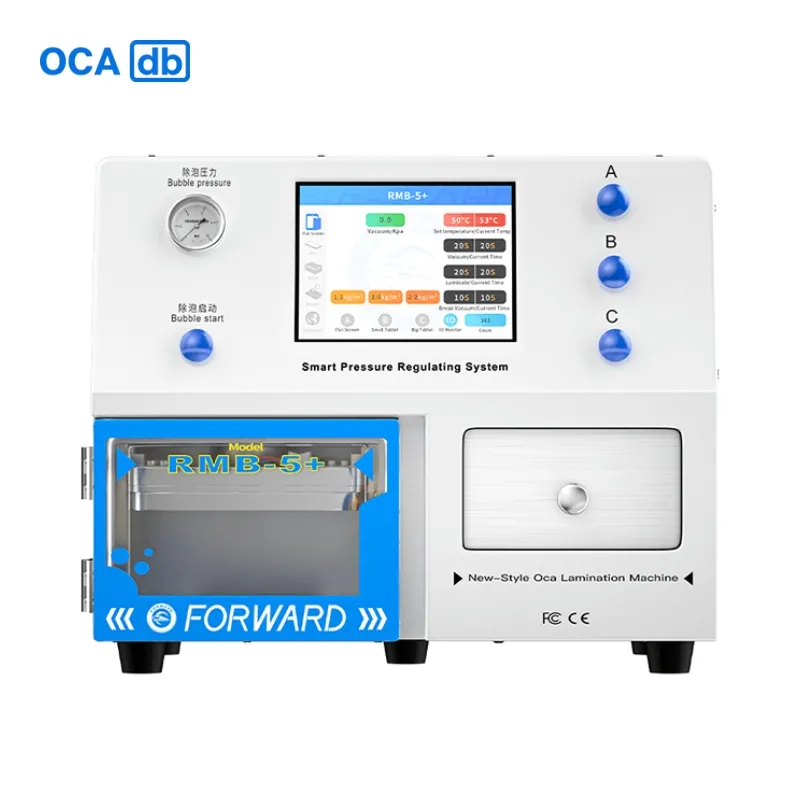

The RMB-5 Plus OCA lamination machine is a specialized tool for achieving precise, bubble-free screen repairs. By utilizing advanced smart pressure regulation, it automatically adjusts pressure levels to ensure flawless results. Its high precision capabilities make it ideal for working on both flat and curved screens, and it supports displays up to 12 inches in size.
Key Features of the RMB-5 Plus OCA Machine
- CNC Precise Pressure Regulation: Delivers more accurate lamination than manual pressure adjustments.
- Built-in Model Folders: Pre-set models for flat and edge screens, eliminating the need to manually set parameters.
- Customizable Parameters: Allows users to tailor the model parameters for specific needs.
- Wide Compatibility: Supports both flat and curved screens up to 12 inches.
- User-Friendly Operation: Simplifies the process, ready to use with pre-set models.
- High Precision: Ensures a smooth, bubble-free lamination for professional repairs.
Product Specifications
| Product Name | RMB-5 Plus OCA Lamination Machine |
| Brand | FORWARD |
| Working Area | 12 inches |
| Control Panel | 8 inches |
| Power | 700W |
| Voltage | 110/220V |
| Product Weight | 41.9kg |
| Product Size | 335×475×396MM |
| Package Weight | 52kg |
| Package Size | 550×422×470MM |
Product Certificates
RMB-5 Plus OCA Laminating Machine Package Options
| Basic Package | Package A | Package B | Package C |
|---|---|---|---|
| 1× Machine | 1× Machine | 1× Machine | 1× Machine |
| 1× 8mm Magic Mat | 1× 8mm Magic Mat | 1× 8mm Magic Mat | 1× 8mm Magic Mat |
| 1× 6mm Red Mat | 1× 6mm Red Mat | 1× 6mm Red Mat | 1× 6mm Red Mat |
| 1× Edge Basic Mold | 1× Edge Basic Mold | 1× Edge Basic Mold | 1× Edge Basic Mold |
| 1× Flat Basic Mold | 1× Flat Basic Mold | 1× Flat Basic Mold | 1× Flat Basic Mold |
| 1× 12mm Pipe | 1× 12mm Pipe | 1× 12mm Pipe | 1× 12mm Pipe |
| 1× 8mm Pipe | 1× 8mm Pipe | 1× 8mm Pipe | 1× 8mm Pipe |
| 1× Power Cord | 1× Power Cord | 1× Power Cord | 1× Power Cord |
| – | 1× Sheet Metal Plate | 1× Sheet Metal Plate | 1× Sheet Metal Plate |
| – | 1× Powerful Vacuum Pump (FW-125G) | 1× Powerful Vacuum Pump (FW-125G) | – |
| – | 5× Edge Molds (FW-L03) | 5× Edge Molds (FW-L03) | 5× Edge Molds (FW-L03) |
| – | – | 1× Black Compressor (FW-122B) | 1× Black Compressor (FW-122B) |
| – | – | – | 1× Blue Vacuum Pump (FW-126S) |
Frequently Asked Questions
For detailed information on our equipment customization options, warranty policies, and more, please explore the OCADB Solutions Guide.
For retail customers, orders are shipped from Hong Kong, with a delivery time of 7–9 working days, not including the shipment pick-up date. Once the goods arrive at the local customs, clients are responsible for handling the customs clearance process. After clearance, the goods will be handed over to DHL for final delivery. Please note that once DHL picks up the shipment, no changes to the receiving information can be made. To ensure smooth and efficient delivery, please confirm that the recipient’s address and contact number are accurate and available before dispatch.
For wholesale customers, we will discuss and arrange the most suitable shipping method to meet your specific needs.
